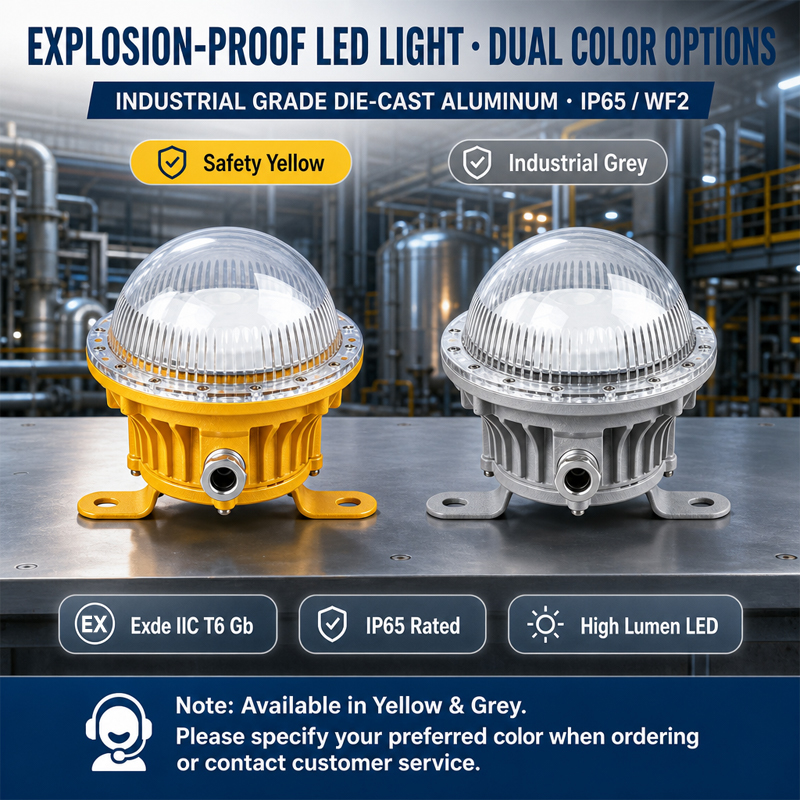

Maintenance-Free Explosion-Proof Lamp
Produt Introduction:
The GLOMRO maintenance-free LED explosion-proof light adopts an integrated structural design. It is specially developed for flammable and explosive hazardous locations, featuring explosion-proof, anti corrosion, water-proof and dust proof, long service life and maintenance free performance. It is widely used in petroleum, chemical, metallurgy, coal mining and other industries.
Explosion-proof marking: Ex de IIC T6 Gb / Ex tD A21 IP65 T80°C
Application Scope:
l Industries: Petroleum, petrochemical, chemical, metallurgy, coal mining, railway, fire-protection, flood-control, oil-field and various industrial & mining enterprises；
l Hazardous Locations: Drilling platforms, petrochemical plants and other flammable explosive hazardous sites；
l Gas Atmospheres: Zone 1, Zone 2 and IIA, IIB, IIC gas environments
l Dust Atmospheres: Combustible-dust Zone 20, Zone 21 and Zone 22；
l Temperature Groups: T1~T6；
lSpecial Sites: Indoor and outdoor locations with high protection requirements, humid conditions, requiring ultra-long-life light sources and instant-on illumination
Structural Features:
1. Housing Material: High-quality die-cast aluminum alloy with high-voltage electrostatic spraying surface treatment for good corrosion resistance and explosion-proof performance.
2. Light Source: Imported LED chips with high luminous efficiency, good color rendering, low light decay, flicker-free output and ultra-long service life for maintenance-free operation with low follow-up operational cost.
3. Modular Assembly: Modular-designed light source unit, reflector unit and power supply module for easy replacement and lower maintenance expenses.
4. Heat Dissipation: Hollowed out heat dissipation structure combined with integrated construction delivers outstanding thermal performance.
5. Fasteners: Stainless steel screws for rust-proof and anti-corrosion performance.
6. Sealing: Scientific sealing structure with custom made sealing strips and embedded installation mode, providing reliable water-proof and dust-proof performance for harsh working conditions.
7. Lampshade Options:
l PC transparent dome cover: High light transmittance and good impact resistance；
l Tempered-glass flat cover: High temperature resistant and wear resistant；
l Opal PC diffuser cover: Soft light output with zero glare.
8. Bracket: Standard U-shaped adjustable mounting bracket.
|
Model
|
GLO-PC-5W GLO-PC-10W
GLO-PC-20W GLO-PC-30W
|
GLO-PC-50W
GLO-PC-60W
|
GLO-GL-5W GLO-GL-10W
GLO-GL-20W GLO-GL-30W
|
|
Material
|
Aluminum alloy, PC
|
Aluminum alloy, Tempered glass
|
|
Light Source
|
LED
|
|
Light Source Type
|
SMD chip
|
|
Rated Voltage
|
AC85V~265V / 50Hz
|
|
Rated Power
|
5W/10W/20W/30W
|
50W/60W
|
5W/10W/20W/30W
|
|
Luminous Flux
|
500Lm/1000Lm/2000Lm/3000Lm
|
5000Lm/6000Lm
|
500Lm/1000Lm/2000Lm/3000Lm
|
|
Ingress Protection
|
IP65
|
|
Anti-corrosion Grade
|
WF2
|
|
Cable Gland Thread
|
G1/2" G3/4"
|
G3/4"
|
|
Power Factor
|
≥0.95
|
|
Power Supply Efficiency
|
≥0.88
|
|
Color Temperature
|
5500K~6500K
|
|
Weight
|
≈1.6Kg
|
≈3.8Kg
|
≈1.6Kg
|
|
Recommended Mounting Height
|
1.5m~3m
|
2m~4m
|
1.5m~3m
|
|
Recommended Mounting Spacing
|
2m
|
2m~3m
|
2m
|
|
Explosion-proof Mark
|
Exde IIC T6 Gb/Ex tD A21 IP65 T80°C
|
|
Installation Method
|
Ceiling-mount, Pendant-mount, Wall-mount(30°/90°), Guardrail-mount, Flange-mount
|
|
Light Source Lifespan
|
≥50000h
|
|
Remarks
|
DC12V / DC24V / DC36V are optional; please specify when placing order
|
