Single Wing Drop Impact Tester Precision For Plane / Edge / Angle Testing

  • 1
  • 2
  • 3

Brand Name : BAXIT

Model Number : GLO-8516

Place of Origin : CHINA

MOQ : 1SET

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10SET/DAY

Delivery Time : 5-8 WORK DAY

Packaging Details : Wooden box

Drop Height Error : ±10mm

Power Supply : AC380V 50HZ

Max Weight : 80Kg

Size of Test Bench : 1700*1200*2315mm

Pallet Dimension : 180*180mm

Rise Speed : 90cm/min

Contact Now

Falling Impact Test Machines Package Single Arm Point Edge


Product Description



Application :

1. Single wing drop impact tester is used to measure the dropping impact incidence when the package in using, transportation and decorating.

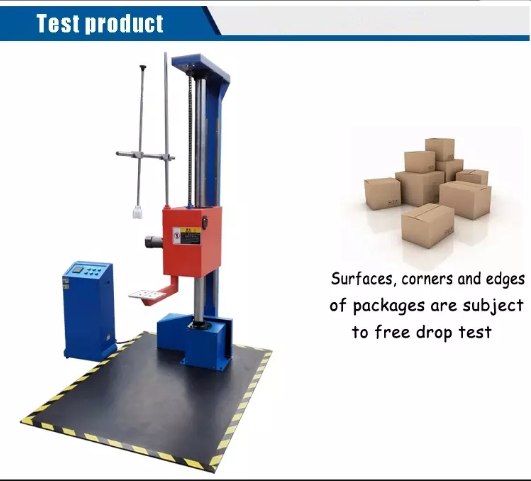

2. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.



Features :

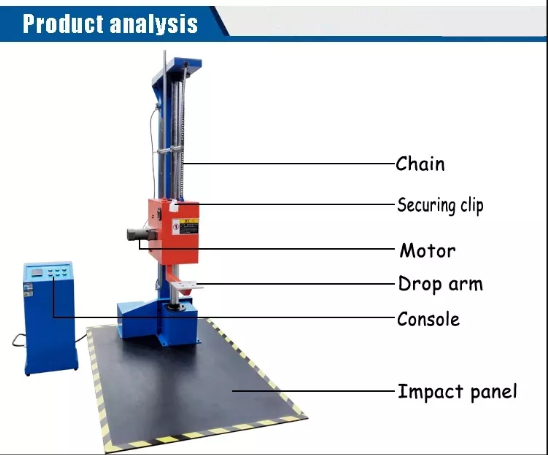

Unique swing arm mechanism design, swing arm break away from acceleration more than 3 G/SEC.With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.Damping screw lifting mechanism, preventing drop institution unexpectedly glide.Pneumatic automatic chain, preventing swing arm unusual break away.Extensible support bracket and baseboard.



Specification :

Model GLO-8516
Drop height range(mm) 300---1500/300----2000
Specimen max.weight(kg) 85
Specimen max. size(mm) 800*800*800
Drop mode Freedom
Machine Dimension(mm) 1500*1000*2150/1700*1200*2750
Machine weight 700kg
Power supply AC380V 50Hz compressed air 0.5~0.7Mpa
Standards ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27





Single Wing Drop Impact Tester Precision For Plane / Edge / Angle Testing

Single Wing Drop Impact Tester Precision For Plane / Edge / Angle Testing

Single Wing Drop Impact Tester Precision For Plane / Edge / Angle Testing



Packaging & Shipping

1. Aluminium box and carton box, careful and tight package, make sure the package is intact

2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.

Single Wing Drop Impact Tester Precision For Plane / Edge / Angle Testing
Our Services

If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.

1. Pre-service

24 Hours online service for customers' consultation.

2. Middle service

-- Fullfill customer's request:

-- Payment method depends on customer.

-- Promptly production and delivery

-- Can provide invoice value if you want to decrease your tax.

3. After sale service

-- One year warranty service and all life maintenance.

-- Technical Egineer are avalible for oversea trainning.

-- Remote control technical consult
